127mm Silica Gel Fiber Optic Polishing Pad with 0.3dB Grade and 3D Polishing for Precision Grinding

  • 127mm Silica Gel Fiber Optic Polishing Pad with 0.3dB Grade and 3D Polishing for Precision Grinding
  • 127mm Silica Gel Fiber Optic Polishing Pad with 0.3dB Grade and 3D Polishing for Precision Grinding
  • 127mm Silica Gel Fiber Optic Polishing Pad with 0.3dB Grade and 3D Polishing for Precision Grinding
  • 127mm Silica Gel Fiber Optic Polishing Pad with 0.3dB Grade and 3D Polishing for Precision Grinding
Menşe yeri ÇİN
Marka adı KCO, Kocent Optec Limited
Sertifika RoHS, ISO
Model numarası KCO-JIG-FC-36
Belge fiber optic polishing rubbe...ds.pdf
Min sipariş miktarı Müzakere
Fiyat negotiable
Ambalaj bilgileri kağıt torba, karton kutu
Teslim süresi Ödeme aldıktan sonra 2 ~ 5 gün
Ödeme koşulları T/T, Western Union, L/C
Yetenek temini 200.000 adet/ay

Ücretsiz numune ve kuponlar için bana ulaşın.

Naber:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

Herhangi bir endişeniz varsa, 24 saat çevrimiçi yardım sağlıyoruz.

x
Ürün ayrıntıları
P/N KCO-PAD-JP-70 Seviye 0,3dB, 3D
Poliş kapsamı Fiber optik konektör Disk Boyutu 127 mm
Bağlayıcı maks. 48 bağlayıcı Makine Köşe basınçlı parlatma makinesi
Vurgulamak

127mm Fiber Optic Polishing Pad

,

0.3dB Grade Polishing Rubber Pad

,

3D Polishing Fiber Connector Polishing Pad
Mesaj bırakın
Ürün Açıklaması

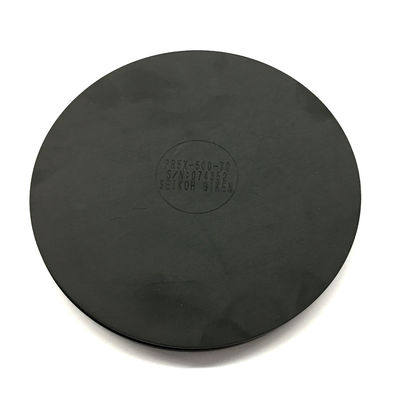

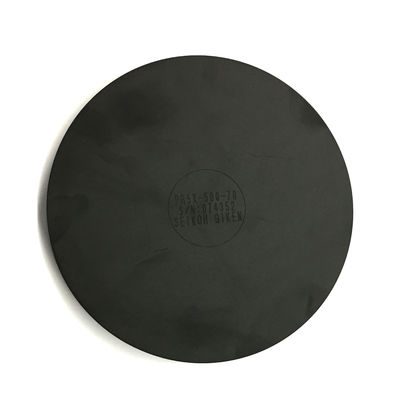

PR5X-500-60 70 75 80 85 90 fiber optic connectors polishing rubber pad 127mm
Product Description

PR5X-500-60 70 75 80 85 90 fiber optic connectors polishing rubber pad 127mm

  • Fiber Optic Polishing Rubber Pad is suitable for grinding optical fiber connectors, including ceramic ferrules, MTP, MPO and other non-standard connectors
  • Widely used in four-point pressure grinding machines and precision engineering SFP-550 series grinding machines
  • Available in multiple degrees (60°, 70°, 75°, 80°, 85°, 90°) for different polishing processes
Applications
  • Fiber optic connector polishing
  • Fiber optic patch cord production
  • Fiber optic pigtail production
  • Fiber optic splitter production
  • Fiber optic fast connector production
Related Machines
127mm Silica Gel Fiber Optic Polishing Pad with 0.3dB Grade and 3D Polishing for Precision Grinding 0 127mm Silica Gel Fiber Optic Polishing Pad with 0.3dB Grade and 3D Polishing for Precision Grinding 1 127mm Silica Gel Fiber Optic Polishing Pad with 0.3dB Grade and 3D Polishing for Precision Grinding 2 127mm Silica Gel Fiber Optic Polishing Pad with 0.3dB Grade and 3D Polishing for Precision Grinding 3
Specifications
  • Used in grinding spherical surfaces
  • Model: 500-50, 55, 60, 65, 70, 75, 80, 85, 90 (permanent stores)
  • External Dimension: 127*5mm
  • Material: Silica gel
Product Applications
Product Type Application
D
  • Lapping for Fiber optic connector, fiber array, glass pig tail (angle removal, rough grinding, medium polishing, fine finishing)
  • Polishing for magnetic heads and hard disks
  • Lapping and polishing for optical glasses, optical crystal, LED
  • Lapping and polishing for Semiconductor wafer (gallium arsenide, indium phosphide etc.)
  • Edge polishing for silicon wafer
SC
  • Epoxy and glass removal
  • Lapping and polishing for plastic ferrules
  • Fine finishing and polishing for magnetic heads
AO
  • Polishing for fiber optical connectors
  • Polishing for silicon wafer used in Solar cells
  • Polishing for hard disks
  • Polishing for ITO
  • Lapping and polishing for optical crystal
CO
  • The final polishing for fiber optical connectors
  • Polishing for optical devices
SO The final super-precise polishing of optical fiber connector
Detailed Specifications
Type D (Diamond) SC (Silicon Carbide) AO (Aluminum Oxide) CO (Cerium Oxide) SO (Silicon Oxide)
Grit Size/um 30 Green Light Green Green
20 White
16 White
15 Yellow-Green Tawny Light Green Brown
12 Yellow
9 Blue Orange Gray-green Blue
6 Yellow
5 Gray-green White
3 Pink Tan Pink & White
2 Gray-green Bright Green
1 off-white Lavender Gray-green Blue
0.5 off-white Brown-yellow White White
0.3 White Dark Red
0.2 Grey
0.1 Light Brown White
0.02 Transparent
0.01 Transparent
Recommended Polishing Medium Water/Oil Water/Oil Water/Oil SOQ-12D Water
Standard Size Disk: Φ70mm, Φ110mm, Φ127mm(5inch), Φ203mm(8inch)
Sheet: 114mm*114mm, 152mm*152mm (6inch), 228*228mm (9inch)
Note: Other film sizes are available upon request.
Fiber Optic Patch Cord Production Process
127mm Silica Gel Fiber Optic Polishing Pad with 0.3dB Grade and 3D Polishing for Precision Grinding 4
OEM/ODM Service

We offer custom branding services for your products including cables, packaging bags, labels, and more. Contact our sales team for personalized support.

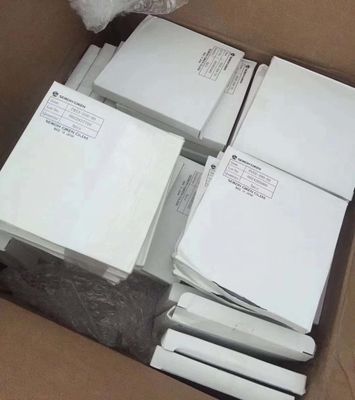

Packing & Shipping
Packing Options:
  • Standard Export Packing
  • Carton box
  • Wooden box
  • Wooden pallet
Shipping Methods:
  • International express: UPS, TNT, DHL, etc.
  • International air: CA, AA, EA, etc.
  • Sea freight
Standard Export Ports:
  • Sea ports: Shenzhen, Hongkong, Ningbo
  • Airports: Shenzhen, Hongkong, Hangzhou, Shanghai
