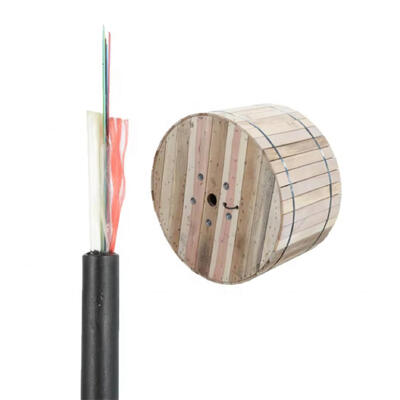

Aerial 6fo 12fo 24fo ASU fiber optic cable / Mini ADSS Outdoor Fiber Optic Cable 100M 200M Span

  • Aerial 6fo 12fo 24fo ASU fiber optic cable / Mini ADSS Outdoor Fiber Optic Cable 100M 200M Span
  • Aerial 6fo 12fo 24fo ASU fiber optic cable / Mini ADSS Outdoor Fiber Optic Cable 100M 200M Span
  • Aerial 6fo 12fo 24fo ASU fiber optic cable / Mini ADSS Outdoor Fiber Optic Cable 100M 200M Span
Menşe yeri Guangdong, Çin
Marka adı KCO, Kocent Optec Limited
Sertifika ISO9001, RoHS
Model numarası KCO-M/ADSS-G652D-XXFO
Min sipariş miktarı Müzakere
Fiyat negotiable
Ambalaj bilgileri ahşap rulo, ahşap palet
Teslim süresi Ödeme alındıktan 3 ~ 5 gün sonra
Ödeme koşulları Western Union,T/T,L/C
Yetenek temini 10.000km/ ay

Ücretsiz numune ve kuponlar için bana ulaşın.

Naber:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

Herhangi bir endişeniz varsa, 24 saat çevrimiçi yardım sağlıyoruz.

x
Ürün ayrıntıları
Malzeme PE, AYPE, YYPE İsim dış mekan fiber optik kablo
Uzunluk Her ruloda 2km ~ 3km Kablo Tipi Mini ADSS
Elyaf Tek mod Çekirdekler 24 çekirdekten 2 çekirdek
Renk Siyah Çap 6,5 mm
Parça Numarası KCO-M/ADSS-G652D-XXFO
Vurgulamak

ASU fiber optic cable with warranty

,

Mini ADSS outdoor fiber optic cable

,

fiber optic cable 100M 200M span
Mesaj bırakın
Ürün Açıklaması
ASU Fiber Optic Cable / Mini ADSS Outdoor Fiber Optic Cable
Aerial 6fo 12fo 24fo ASU fiber optic cable / Mini ADSS Outdoor Fiber Optic Cable with 100M-200M span capabilities.
What is ASU Fiber Optic Cable?
ASU Fiber Optic Cable (Aerial Self-Supporting Universal Cable) is a non-armored uni-tube optical cable with fibers placed in loose buffer tubes. The cable core is protected with jelly to prevent water intrusion and migration, and covered with a black polyethylene outer jacket. Two embedded FRP or metallic wires provide desired tension.
This robust, all-dielectric cable is designed for overhead deployment on utility poles, featuring integrated strength members (like FRP) for self-support, eliminating messenger wires, and resisting electromagnetic interference. Ideal for telecom, data center, and access networks requiring high-speed, reliable aerial connectivity.

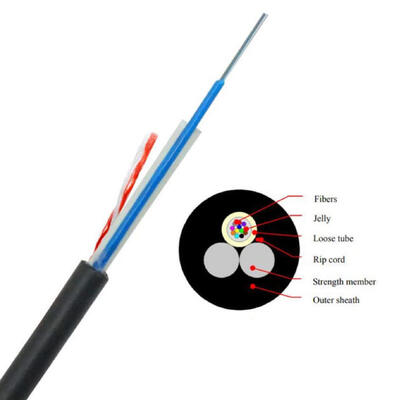

ASU Fiber Optical Structure
Aerial 6fo 12fo 24fo ASU fiber optic cable / Mini ADSS Outdoor Fiber Optic Cable 100M 200M Span 0
ASU Fiber Optic Cable Advantages
  • Faster Speeds & Larger Capacity: Transmits data via light for high bandwidth
  • Durability: Weatherproof materials withstand harsh outdoor conditions
  • Cost-Effective Installation: Self-supporting design reduces labor and materials
ASU Fiber Optic Cable Characteristics
  • Large span lengths with maximum span over 1700 meters
  • Non-metallic material with high insulating properties and lightning-proof performance
  • Special anti-track outer sheath protection with strong anti-electro-corrosion ability
  • Aramid yarn ensures tensile resistance and provides good bullet-proof performance
  • Light weight with small diameter, reducing ice and wind loads as well as tower load
  • Can be installed without shutting off power
Applications
  • Outdoor deployment
  • Suitable for aerial and pipeline laying methods
  • Long distance and local area network communication
Cable Mechanical Characteristics
Item Contents Value
Loose tube Number 1
Outer diameter (mm) 2.1
Thickness 0.3
Materials PBT
Water blocking Tube filling compound
Strength member Materials FRP
Diameter (mm) 2.0 | 2.5
Number 2
Water blocking Material Water blocking yarn
Sheath Material HDPE
Color Black
Rip cord Number 1.2
Cable diameter (mm) Approx 6.5±0.5 | 7.5±0.5
Cable weight (kg/km) Approx 45 | 65
Span (m) 80 | 120
MAT 690 | 980
Fiber Characteristics
Fiber style Unit MM
Condition nm 850/1300
Attenuation dB/km ≤3.0/1.0
Dispersion 1550nm Ps/(nm*km) Dispersion
1625nm Ps/(nm*km)
Bandwidth 850nm MHZ.KM Bandwidth
1300nm MHZ.KM
Zero dispersion wavelength nm ≧ 1295, ≤1320
Zero dispersion slope nm
PMD Maximum Individual Fiber ≤0.11
PMD Design Link Value Ps(nm2*km)
Fibre cutoff wavelength λc nm
Cable cutoff wavelength λcc nm
MFD 1310nm um
1550nm um
Numerical Aperture (NA) 0.200+/-0.015
Step (mean of bidirectional measurement) dB ≤0.10
Irregularities over fiber length and point dB ≤0.10
Fiber Color Coding
Blue
Orange
Green
Brown
Grey
White
Red
Black
Yellow
Violet
Pink
Aqua
OEM/ODM Service
We offer comprehensive OEM and ODM services. You can display your own brand logo on the cable, packaging bag, label, or any other location as required.
Aerial 6fo 12fo 24fo ASU fiber optic cable / Mini ADSS Outdoor Fiber Optic Cable 100M 200M Span 1
Packing
  • Standard export packing
  • Carton box, wooden box, wooden pallet
Shipping
  • International express: UPS, TNT, DHL, etc.
  • International air: CA, AA, EA, etc.
  • By sea
