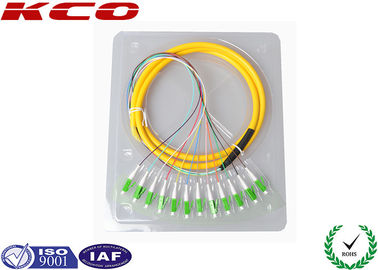

LC APC Optical Fiber Single Pigtail Optical Fiber / Fanout LC Pigtail Fiber Optic Connectors

  • LC APC Optical Fiber Single Pigtail Optical Fiber / Fanout LC Pigtail Fiber Optic Connectors
  • LC APC Optical Fiber Single Pigtail Optical Fiber / Fanout LC Pigtail Fiber Optic Connectors
  • LC APC Optical Fiber Single Pigtail Optical Fiber / Fanout LC Pigtail Fiber Optic Connectors
Place of Origin Guangdong, China
Marka adı KCO
Sertifika ISO9001, RoHS
Model Number LCA-12fo-fanout-1.5m
Minimum Order Quantity Negotiation
Fiyat negotiable
Packaging Details PE bag, carton box, wooden roll
Delivery Time 2~5 days after get payment
Ödeme koşulları Western Union,T/T,L/C
Supply Ability 900,000pcs/month

Ücretsiz numune ve kuponlar için bana ulaşın.

Naber:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

Herhangi bir endişeniz varsa, 24 saat çevrimiçi yardım sağlıyoruz.

x
Ürün ayrıntıları
Bağlayıcı LC/APC Çekirdek 12 Çekirdek
Kapak LSZH,... Kablo Uzunluğu 1,5m
yayılım uzunluğu 30 mm Kablo Çapı 4,2 mm
Vurgulamak

fibre optic patch cable

,

patch cord pigtail
Mesaj bırakın
Ürün Açıklaması
LC APC Optical Fiber Single Pigtail
High-performance LC APC fiber optic pigtails designed for reliable connectivity in various telecommunications and networking applications.
Quick Specifications
Connector:
LC/APC 0.9mm
Connector boot color:
White or green
Fiber number:
12 cores
Accessories:
Fanout
Diameter:
4.2mm
Length:
1.5m
Fanout length:
30cm
IL:
0.15dB
RL:
55dB
Mode:
Single mode 9/125
Cover:
PVC
Cable color:
Yellow
Product Images
LC APC Optical Fiber Single Pigtail Optical Fiber / Fanout LC Pigtail Fiber Optic Connectors 0 LC APC Optical Fiber Single Pigtail Optical Fiber / Fanout LC Pigtail Fiber Optic Connectors 1 LC APC Optical Fiber Single Pigtail Optical Fiber / Fanout LC Pigtail Fiber Optic Connectors 2
Applications
  • CATV (Cable Television)
  • Telecommunication networks
  • Computer fiber networks and fiber test equipment
  • Communication rooms
  • FTTH (Fiber to The Home)
  • LAN (Local Area Network)
  • FOS (fiber optic sensor)
  • Fiber Optic Communication System
  • Optical fiber connected and transmitted equipment
  • Defense combat readiness
Key Characteristics
  • Low insertion loss
  • High return loss
  • Good repeatability
  • Good interchange
  • Excellent environmental adaptability
Product Description
LC fiber optic pigtails are available in single mode UPC APC and multimode PC configurations. The cable number can be simplex, duplex or multi-fiber fan out/break out. Available cable diameters include 0.9mm, 2.0mm, 3.0mm, 4.2mm, and more.
About Fiber Optic Patch Cables
A fiber optic patch cable is a fiber optic cable capped at either end with connectors that allow rapid and convenient connection to CATV, optical switches, and other telecommunications equipment. The thick protective layer is designed to connect optical transmitters, receivers, and terminal boxes.
Single Mode Cables
Single Mode fiber optic cable features a small diametral core that allows only one mode of light to propagate. This reduces light reflections, lowers attenuation, and enables signals to travel longer distances. Typically used in long-distance, high-bandwidth applications by telecommunications companies, CATV providers, and educational institutions.
Multi Mode Cables
Multimode fiber optic cable has a large diametral core that allows multiple modes of light to propagate. This increases data transmission capacity but results in higher dispersion and attenuation over long distances. Commonly used for short-distance data and audio/video applications in LANs.
Multi-mode Fiber Types
Multi-mode fibers are described by their core and cladding diameters, typically 50/125 µm or 62.5/125 µm. Current multi-mode fiber categories include OM1, OM2, OM3, and OM4, each with specific performance characteristics and applications.
Technical Specifications
Type Standard, Master
Connector Style LC, SC, ST, FC, MU, DIN, D4, MPO, SC/APC, FC/APC, LC/APC, Duplex MTRJ/Female, MTRJ/Male
Fiber Type 9/125 SMF-28 or equivalent (Single mode) OS1
50/125, 62.5/125 (Multimode) OM2&OM1
50/125 10G (Multimode) OM3
G652 (all type), G657(all type), G655(all type)
Cable Type Simplex, Duplex (Zip cord)
Φ3.0mm, Φ2.0mm, Φ0.9mm
Buffered fiber
Cable Cover material PVC, LSZH, Armored, Water-proof, FTTH, Outdoor
Return Loss (Single mode) ≤ 0.15dB (Master)
≤ 0.30dB (Standard)
≤ 0.30dB (Multi mode)
Tested by JDS RM 3750
UPC ≥ 50dB, SPC ≥ 55dB, APC ≥ 60dB (typ.65dB)
Tested by JDS RM3750
Repeatability ±0.1dB
Operating Temperature -40°C to 85°C
Packing
LC APC Optical Fiber Single Pigtail Optical Fiber / Fanout LC Pigtail Fiber Optic Connectors 3 According to Standard Export Packing. Carton box, wooden box, wooden pallet.
Shipping Options
  • International express: UPS, TNT, DHL, etc.
  • International air: CA, AA, EA, etc.
  • By sea
OEM/ODM Services
We offer comprehensive OEM and ODM services. Custom branding options available for cables, packaging bags, labels, and other components. Display your own logo on our products.
