GPON Fiber Optic Terminal Box , 1*8 Splitter Box 8 Ports Water - proofing

Place of Origin Guangdong, China
Marka adı KCO, Kocent Optec Limited
Sertifika ISO9001
Model Number KCO-FDB-8E
Minimum Order Quantity Negotiation
Fiyat Negotiation
Packaging Details carton box, wooden pallet
Delivery Time 7~14 days after get payment
Payment Terms Western Union, T/T, L/C
Supply Ability 20,000 pcs/ month

Ücretsiz numune ve kuponlar için bana ulaşın.

Naber:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

Herhangi bir endişeniz varsa, 24 saat çevrimiçi yardım sağlıyoruz.

x
Ürün ayrıntıları
Material ABS+PC Insertion loss 0.10dB
Return loss 55dB Connector SC, ST, LC, FC, E2000, etc
Application Outdoor, Wall mount, Pole mount Capacity 8 cores
Vurgulamak

optical termination box

,

fibre termination box

Mesaj bırakın
Ürün Açıklaması

KCO-FDB-8E Outside GPON Fiber Optic 1*8 Splitter Box 8 Ports Water-proofing



Description
- This outdoor fiber optic splitter box terminates up to 2 fiber optic cables, offers space for splitters and up to 8 fusions, allocates 8 pcs of SC adapters or and working under both indoor and outdoor environments. - - - - - Fiber optic distribution box is a perfect cost-effective solution-provider in the FTTx networks.



Item: Outdoor Water Proof Fiber Optic Terminal Splitter Distribution Box
Part Number: KCO-FDB-8E
Material: PC + ABS
Size: 190*165*42mm
Weight: 0.65kg
Cable port 3 cable ports
Cable diameter < 24 cm
Accessories heat shirk tube, fiber optic splitter, fiber optic adapter, Outer box


Features
- ABS material used ensures the body strong and light.
- Water-proof design for outdoor uses.
- Easy installations: Ready for wall mount – installation kits provided.
- Adapter slots used – No screws and tools needed for installing adapters.
- Ready for splitters: designed space for adding splitters.
- Space saving:Double-layer design for easier installation and maintenances:
- Lower layer for splitters and over length fiber storage.
- Upper layer for splicing, cross-connecting and fiber distribution.
- Cable fixing units provided for fixing the outdoor optical cable.
- Protection Level: IP55.
- Accommodates both cable glands as well as tie-wraps
- Lock provided for extra security

Application:
- Widely used in FTTH access network.
- Telecommunication Networks
- CATV Networks
- Data communications Networks
- Local Area Networks

Operation conditions:
- Temperatures:-40℃ -- 60℃
- Humidity:93% at 40℃
- Air Pressure: 62 kPa – 101 kPa

FTTH distribution box Package includes:
- Terminal box, 1 unit
- Keys for lock, 2 keys
- Wall mount installation accessories, 1 set (optional)

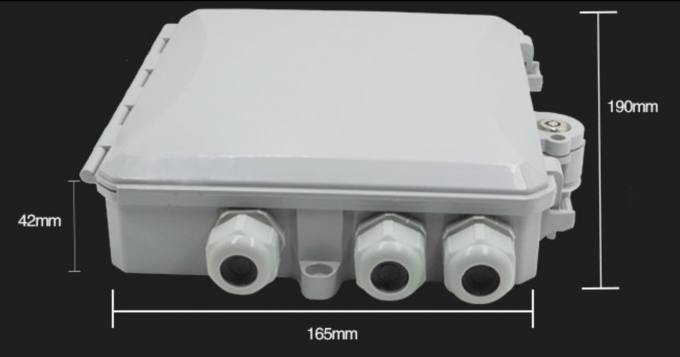

Size:

GPON Fiber Optic Terminal Box , 1*8 Splitter Box 8 Ports Water - proofing 0



Product picutures:

GPON Fiber Optic Terminal Box , 1*8 Splitter Box 8 Ports Water - proofing 1

GPON Fiber Optic Terminal Box , 1*8 Splitter Box 8 Ports Water - proofing 2

GPON Fiber Optic Terminal Box , 1*8 Splitter Box 8 Ports Water - proofing 3

GPON Fiber Optic Terminal Box , 1*8 Splitter Box 8 Ports Water - proofing 4
